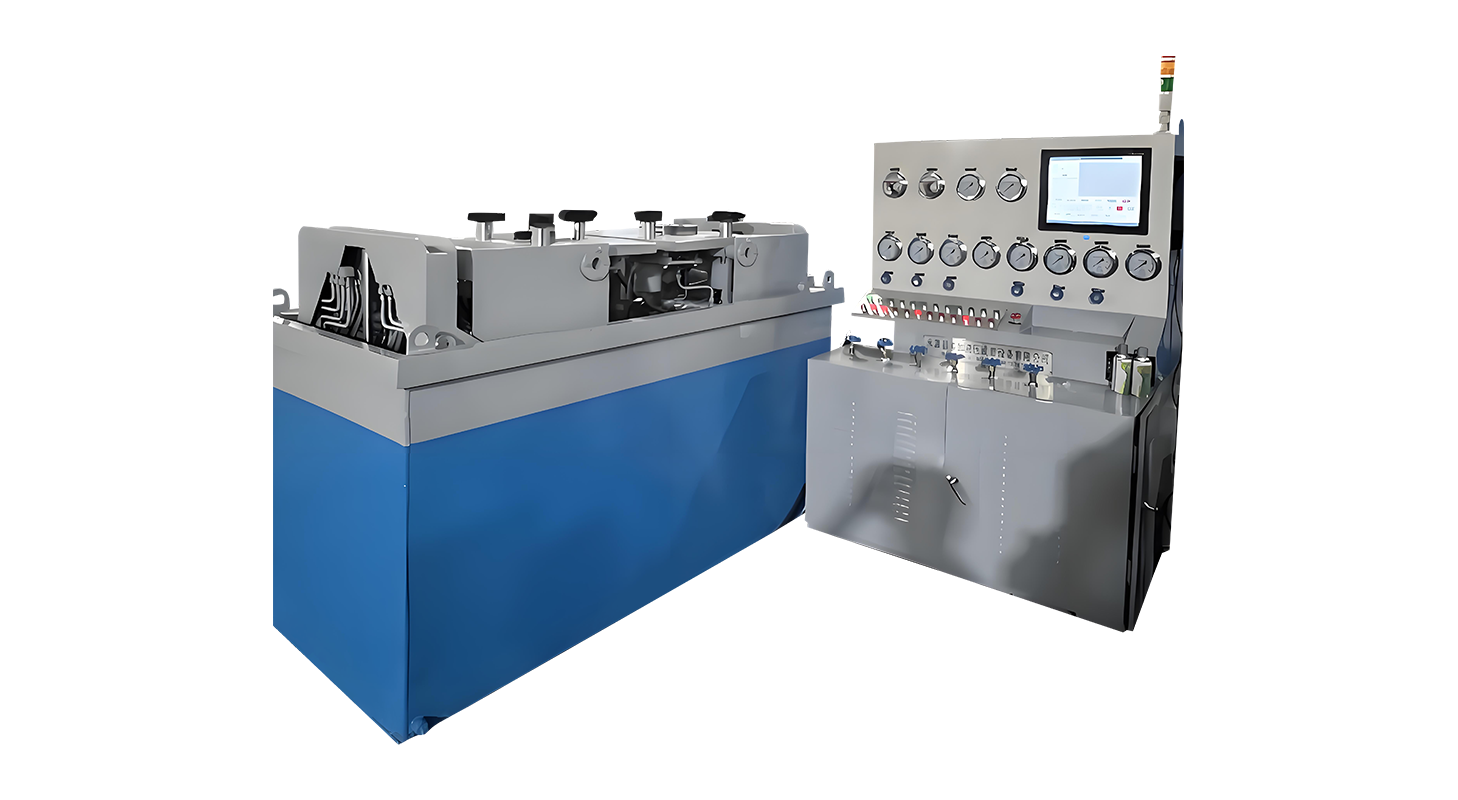

DYFJ-C Submerged Hydraulic Valve Test Bench

Key Performance
1. Versatile Testing Capabilities
The DYFJ-C is specifically designed to test a wide range of flange-connected valves. The entire workbench, along with the valve under test, can be submerged into a water tank, facilitating convenient and efficient pneumatic testing.

2. Hydraulic Clamping System
The test bench utilizes a hydraulic claw system to seal the valve end faces by clamping the back of the flanges. This method ensures that no external force is applied to the valve body, preserving the integrity of the valve during testing and preventing any potential damage.

3. 90-Degree Rotation Functionality
The DYFJ-C is equipped with a 90-degree rotation mechanism, allowing the valve to be flipped for testing on both ends.

4. Dual Media Testing
The test bench supports both water and gas as testing media. The water used for testing can be recycled, making the system environmentally friendly and cost-effective.

5. Advanced Pressure Control System
The DYFJ-C is equipped with a low-pressure rapid water pump and a high-pressure slow-boost water pump. These pumps work in tandem to achieve the desired test pressure, after which the system automatically enters a pressure-holding phase for accurate timing and evaluation.

6. Zero-Pressure Safety Protection
Safety is a top priority in the design of the DYFJ-C. The system includes a zero-pressure safety protection feature, which ensures that the hydraulic clamps can only be released and the valve removed when there is no pressure inside the valve cavity.

7. Customizable Options
The DYFJ-C can be tailored to meet specific customer requirements. Optional features include safety protection doors and specialized valve detection systems, such as PLC data acquisition systems and automated testing systems.

8. Custom Non-Standard Designs
For clients with unique testing requirements, the DYFJ-C can be customized as a non-standard device. This flexibility ensures that the test bench can accommodate a wide range of valve types and testing scenarios, making it a versatile solution for various industries.

DYFJ-C100
Structural style: split style
Diameter range: DN15-100mm
Flange size: 90-275mm
Valve structure length: 108-432mm
Sealing disc spacing: 100-650mm
Cylinder diameter and quantity: φ80×3
Maximum clamping force: 27T
Oil pump motor: 2.2KW
Test pressure range:

DYFJ-C200
Structural style: split style
Diameter range: DN50-200mm
Flange size: 150-415mm
Valve structure length: 178-597mm
Sealing disc spacing: 170-850mm
Cylinder diameter and quantity: φ110×3
Maximum clamping force: 48T
Oil pump motor: 2.2KW
Test pressure range:

DYFJ-C300
Structural style: split style
Diameter range: DN80-300mm
Flange size: 200-530mm
Valve structure length: 203-850mm
Sealing disc spacing: 200-1080mm
Cylinder diameter and quantity: φ140×3
Maximum clamping force: 98T
Oil pump motor: 3.0KW
Test pressure range:

DYFJ-C400
Structural style: split style
Diameter range: DN150-400mm
Flange size: 280-670mm
Valve structure length: 267-1100mm
Sealing disc spacing: 260-1400mm
Cylinder diameter and quantity: φ160×4
Maximum clamping force: 190T
Oil pump motor: 3.0KW
Test pressure range:

DYFJ-C500
Structural style: split style
Diameter range: DN250-500mm
Flange size: 405-800mm
Valve structure length: 330-1150mm
Sealing disc spacing: 330-1500mm
Cylinder diameter and quantity: φ200×4
Maximum clamping force: 290T
Oil pump motor: 5.5KW
Test pressure range:

DYFJ-C600
Structural style: All-in-one
Diameter range: DN300-600mm
Flange size: 485-930mm
Valve structure length: 356-1350mm
Sealing disc spacing: 330-1600mm
Cylinder diameter and quantity: φ220×4
Maximum clamping force: 360T
Oil pump motor: 5.5KW
Test pressure range:
